$400.00

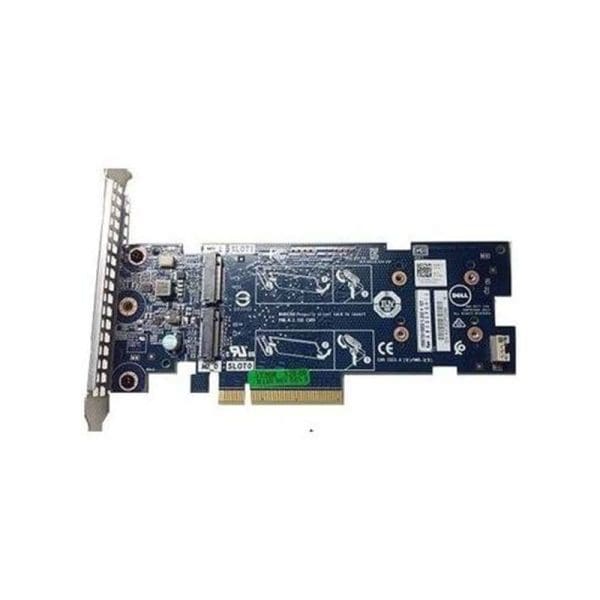

The Dell 403-BBPZ PCI-E 2x M.2 Slots Boss Controller Card provides several management and monitoring options to help administrators keep track of their storage and server environment.
BIOS Configuration: The card’s BIOS provides options for configuring the RAID levels, disk order, and disk cache settings.
RAID Management: The card supports RAID levels 0, 1, 5, and 10, and provides options for monitoring the status of the RAID arrays, as well as rebuilding and managing disk failures.
Management Software: The card comes with the Dell PERC H730P management software, which provides a graphical interface for monitoring and managing the storage environment. This software is compatible with Windows and Linux operating systems.
Manufacturer: Dell
Part Number or SKU# 403-BBPZ
Device Type: Storage Controller (raid) Plug-in Card Low Profile
Supported Devices: Disk Array (Raid)
Interface: PCI Express 3.0 x8
M.2 Slots: 2
M.2 Form Factor: 2280, 2260, 2242, and 2230
M.2 Storage Capacity: Up to 2TB per slot
SATA III: 6.0Gbps per port
RAID Support: RAID 0 and 1
Controller Chip: Marvell 88SE9235
Power Consumption: 4.0W max
Dimensions: 6.6″ x 2.54″
