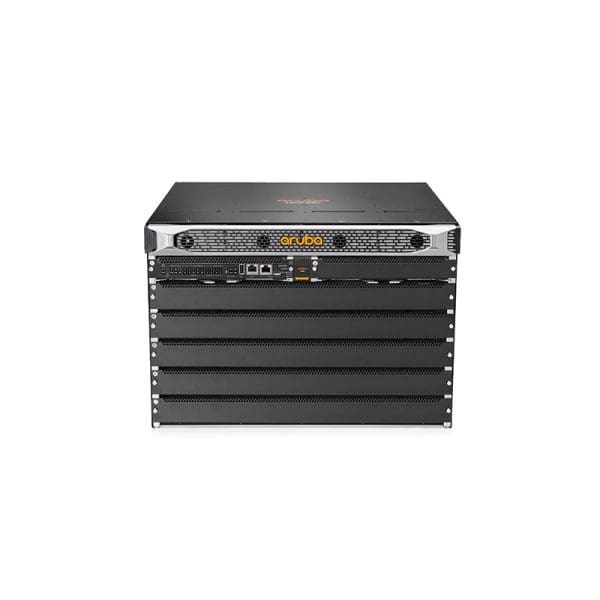

Main Information about the HPE R0X26A
Manufacturer: HPE
Device Type: Managed Switch
Technical Information
Enclosure Type: Rack-mountable 7u
Routing Protocol: Ospf, Bgp, Ospfv3
Encryption Algorithm : Md5, Ssl
Performance & Capacity
Routing/switching Capacity: 14 Tbps
Throughput: 10 GBPS
Capacity: Virtual Interfaces (vlans): 2000
Ipv4 Routing Table Entries: 32000
Ipv6 Routing Table Entries: 32000
Multicast Routes: 8000
Unicast Entries (ipv6): 64000
Unicast Entries (ipv4): 64000
Igmp Groups: 8000
Mld Groups: 4000
Interfaces: 1 X Console Rj-45 ¦ 1 X Usb-c Console ¦ 1 X Usb
Installed Modules Qty (max) : 2 (installed) / 5 (max)
Power
Power Device: Internal Power Supply
Installed Qty: 1 (installed) / 4 (max)
Voltage Required: Ac 120/230 V (50/60 Hz)
Brand: HPE
