General

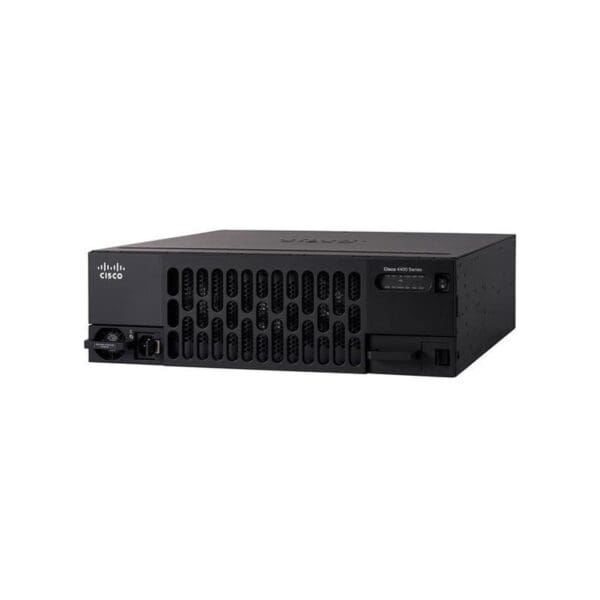

Device Type Router
Enclosure Type Rack-mountable – modular – 3U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, PPP, 10 Gigabit Ethernet, MLPPP, MLFR
Performance Aggregate throughput: 1.5 Gbps
Network / Transport Protocol RSVP, IPSec, PPPoE, DHCP, DNS, IPv4, IPv6
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, PIM-SM, IGMPv3, GRE, policy-based routing (PBR), MPLS, IPv4-to-IPv6 Multicast
Encryption Algorithm DES, Triple DES, SHA, MD5, IKE, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit
Authentication Method RADIUS
Features Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Bidirectional Forwarding Detection (BFD), static routing, Location ID Separation Protocol (LISP), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), Hierarchical Quality of Service (HQoS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR)
Compliant Standards IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 300 386, IECS-003:2004, AS/NZS CISPR 32 Class A, EN 55032 Class A, AAA, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, TIA-968-B 2009
RAM 4 GB
Expansion / Connectivity
Interfaces WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 2 x 10GBase-T/10GBase-X – RJ-45/SFP+ ¦ WAN / LAN: 2 x 1000Base-T/1000Base-X – RJ-45/SFP ¦ Management: 1 x RJ-45 ¦ 1 x auxiliary – RJ-45 ¦ Console: 1 x RJ-45 ¦ Console: 1 x 4 pin USB Type A ¦ USB: 1 x 4 pin USB Type A
Expansion Slots 3 (total) / 3 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 3 (total) / 3 (free) x SM
Power
Power Device Internal power supply – 650 Watt
Power Redundancy Optional
Installed Qty 1 (installed) / 2 (max)
Miscellaneous
Included Accessories Faceplate, fan assembly module
Rack Mounting Kit Included
MTBF 480770 hours
Software / System Requirements
OS Provided Cisco IOS IP Base
Dimensions & Weight
Width 3.5 in
Depth 17.2 in
Height 18.5 in
