General Information

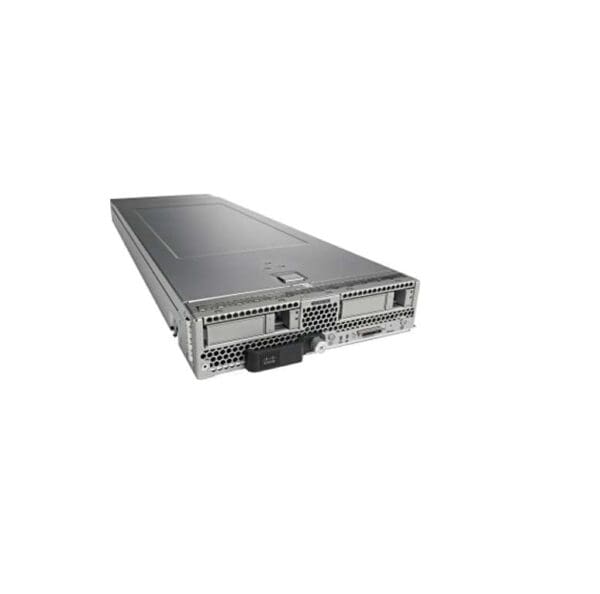

Product Name Ucs B200 M4 with 2x E52680D 256GB 2x 300GB
Manufacturer Part Number UCS-ASR57-B200M4
Product Series B200 M4
Product Type Server
Cisco UCS
Controllers
Controller Type 12Gb/s SAS
Serial ATA
RAID Supported Yes
RAID Levels 0, 1, JBOD
Display & Graphics
Graphics Controller Manufacturer Matrox
Graphics Controller Model G200e
Graphics Memory Capacity Up to 8 MB
I/O Expansions
Number of Total Expansion 2 Bays
Number of Internal 2.5″ Bays 2
Hot Swap Bays Yes
Memory
Standard Memory 256 GB
Maximum Memory 1.50 TB
Memory Technology DDR4 SDRAM
Number of Total Memory 24 DDR4 Slots
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Storage
Total Hard Drive Capacity 600 GB
Hard Drive Interface 12Gb/s SAS
Hard Drive Configuration 2 x 300 GB
Processor & Chipset
Number of Processors Supported 2
Number of Processors Installed 2
Processor Manufacturer Intel
Processor Type Xeon
Processor Model E5-2680v3
Processor Core Dodeca-core (12 Core)
Processor Speed 2.50 GHz
Physical Characteristics
Form Factor Blade Server
Height 2″
Width 8″
Depth 24.4″
